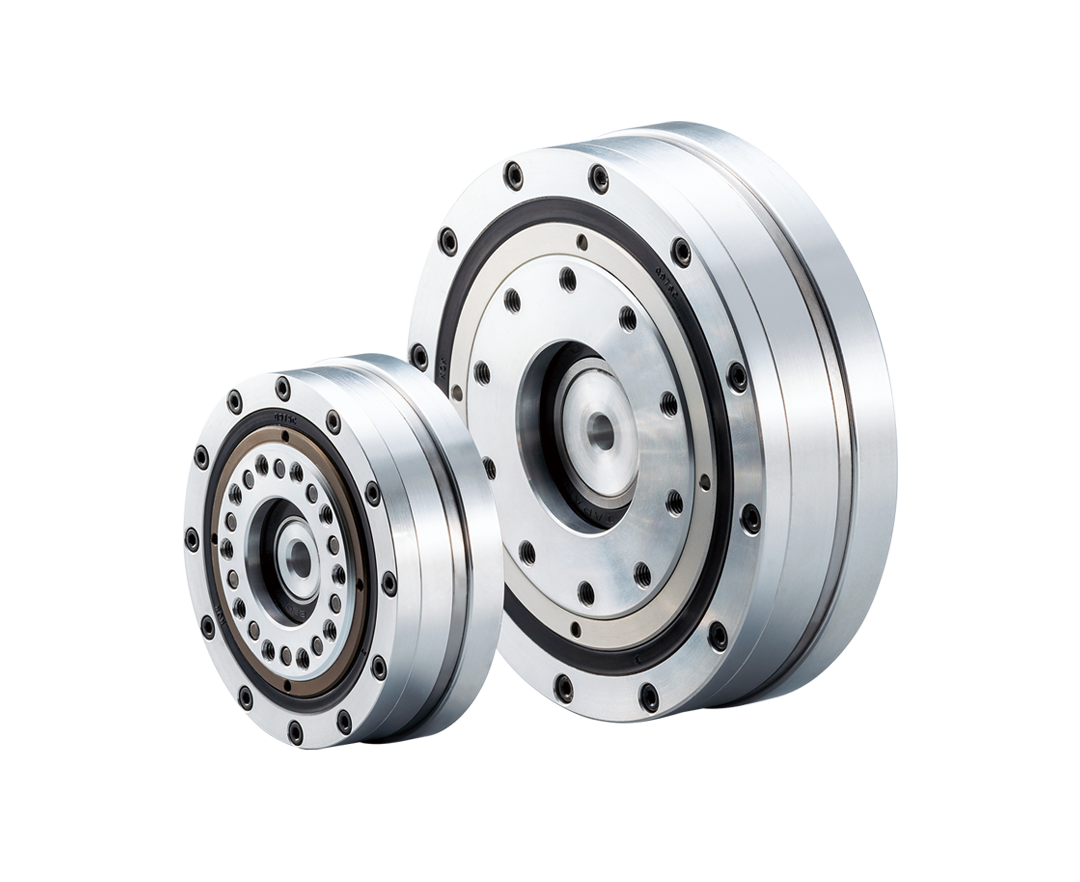

Lightweight Differential Reducer PSL series

The lightest differential speed reducer compared to other same-sized precision speed reducers that use aluminum as the main component.

This reducer is useful for robots, AGVs, and other equipment requiring lightweight and thin profiles.

Lightweight Differential Reducer PSL series

Highlights

Ultra-flat and compact design

The adoption of a differential reduction mechanism and a thin cross-roller bearing has enabled an ultra-flat form. This contributes to the realization of contraction and compactification of equipment.

Lightweight

New lightweight model that uses aluminum for its main components, reducing its weight by about 30% compared to its predecessor. Example:PSR70FCA:0.62kg -> PSL70FCA:0.42kg

High rigidity

High contact ratio and load dispersion have realized extremely high rigidity.

High Accuracy

High transmission accuracy made possible through multiple meshing of high-accuracy rollers and high-precision trochoidal gears.

Small backlash

High-precision positioning with a backlash under 3 arcmins achieved by optimizing each component’s clearance.

High Efficiency

Appropriate pressure angle settings for smooth operation and high efficiency.

Maintenance-free

Grease-filled and maintenance-free. No need to refuel and no restrictions on mounting position.

Motor Attachment Standardization

The PSR Series has standardized motor attachments for servo motors of various manufacturers, allowing the motor to be immediately installed after purchase.

Model

Ultra-Lightweight Thin Differential Reducer

PSL 1
70 2
F 3
C 4
A
19 5
A01 6
08 7
1.Product Name PSL series
2.Frame number 70,110
3.Output shaft shape

F:Flange output

S:Shaft output

4.Input shaft shape C: Clamp
5.Reduction ratio

Frame number 70:19,39,49

Frame number 110:19,39,59

6.Motor mounting code

Please refer to the dimension table or motor and reducer compatibility table.(Catalog: P19-25

7.Input shaft hole diameter

Please refer to the specification table.(Catalog: P17

Specifications

Model
PSL70 PSL110
Reduction ratio
Rotational direction of output axis to input axis
Allowable rated torque N・m
Acceleration peak torque N・m
Maximum instantaneous torque N・m
Allowable average number of input revolutions rpm
Max input rpm rpm
Backlash arcmin
Recommendable motor capacity W
Input axis equivalent inertia moment x10-4 kg・m2
Input shaft hole diameter mm
Mass (without motor attachment) kg
Outline Drawing (F type, S type)
CAD Data
Catalog
Instruction Manual
19 39 49 19 39 59
Reverse Reverse
12 20 20 26 52 52
26 42 42 52 104 104
48 78 78 96 195 195
3000 2000
4500 4500
4 3
100 200・400
0.041 0.040 0.040 0.256 0.247 0.246
6・8 8・10・11・14
0.42 1.4
PDF PDF PDF PDF
CAD
PDF
PDF

Thin Differential Reducer Line-up

Standard Differential Reducer
PSR series
Standard Differential Reducer PSR series
Frame No.

70,110,135

Reduction ratio

19 - 59

Acceleration peak torque(N・m)

32 - 260
